OCT Product Configurations

Use the following images to identify your Axsun SS-OCT Product Configuration or Option:

NEW Azmyth™ OEM Laser Engine
Benchtop Enclosure
Standard OEM Laser Configuration
Standard OEM Configuration with EMI shield
Small Form Factor (SFF) OEM Laser Configuration
Integrated Engine w/ Ethernet DAQ
Integrated Engine w/ Ethernet DAQ and EMI shield
Integrated Engine w/ Camera Link DAQ
Variable Delay Line
PCIe DAQ

NOTE: The standard fiber connector type for Axsun SS-OCT products is FC/APC, as shown in the example images. Optional LC/APC or SC/APC connectors are available on request.

NOTE: Downloadable CAD files in .step format are available for each configuration on the Dimensions page.

Azmyth™ OEM Laser Engine

Azmyth™ is the new Axsun SS-OCT platform which includes our 1060 nm VCSEL lasers driven at A-line rates above 200 kHz by the Azmyth OEM Laser Engine drive electronics.

NOTE: In some instances, the Azmyth configuration may be referred-to as Axsun's "Gen 2" Laser Engine and have part number AXP50124-3.

Description	Axsun Part Number
1060 nm Azmyth OEM Laser Engine	AXP50124-3 / AXP50152-01

Azmyth OEM configuration

Click here to get started using your Azmyth OEM laser engine:

SS-OCT Laser Engine

Benchtop Enclosure

The Benchtop Enclosure configuration is intended for lab use and includes the laser and laser driver electronics in a 3.1" x 6" x 8.2" aluminum chassis. Power and laser emission are operated by a single key-switch and are indicated via LEDs on the front panel. The Benchtop Enclosure configuration is available with or without an integrated K-clock.

Description	Axsun Part Number
1060 nm in benchtop enclosure (with K-clock)	AXP50125-3
1310 nm in benchtop enclosure (no K-clock)	AXP50125-4
1310 nm in benchtop enclosure (with K-clock)	AXP50125-6

Benchtop enclosure configuration

Click here to get started using your Benchtop laser engine:

SS-OCT Laser Engine

Standard OEM Laser Configuration

Description	Axsun Part Number
1060 nm standard OEM (with K-clock, ECL*)	AXP50124-3
1310 nm standard OEM (no K-clock)	AXP50124-6
1310 nm standard OEM (with K-clock)	AXP50124-8
1060 nm standard OEM (with K-clock, VCSEL)	AXP50124-51
* Note: prior to the VCSEL-specific AXP50124-51 part number, engines with VCSEL lasers were also built using the AXP50124-3 number.

Standard OEM configuration with EMI shield

Standard OEM configuration without EMI shield

NOTE: Standard OEM laser engines are available with optional integrated single- or dual-channel balanced photoreceivers. Engines with optional photoreceivers will have a secondary board attached to the main laser driver board:

Click here to get started using your Standard OEM laser engine:

SS-OCT Laser Engine

Integrated Engine (Laser & Ethernet DAQ)

Description	Axsun Part Number
1060 nm Axsun Integrated Engine, Ethernet DAQ	AXP50124-16
1310 nm Axsun Integrated Engine, Ethernet DAQ	AXP50124-17

Axsun Integrated Engine (OEM laser configuration with Ethernet DAQ) shown without EMI shield

Axsun Integrated Engine (OEM laser configuration with Ethernet DAQ) shown with EMI shield

Click here to get started using your Axsun Integrated Engine:

Integrated Engine (Laser & DAQ)

Integrated Engine (Laser & Camera Link DAQ)

Description	Axsun Part Number
1060 nm Axsun Integrated Engine, Camera Link DAQ	AXP50124-11

Axsun Integrated Engine (OEM laser configuration with Camera Link DAQ)

Click here to get started using your Standard OEM laser engine:

SS-OCT Laser Engine

then click here to get started using your Camera Link DAQ:

Camera Link DAQ Board

Small Form Factor (SFF) OEM Laser Configuration

Description	Axsun Part Number
1060 nm Small Form Factor OEM	AXP50124-24
1310 nm Small Form Factor OEM	AXP50124-25

Small Form Factor OEM configuration

Click here to get started using your Small Form Factor OEM laser engine:

SS-OCT Laser Engine

Variable Delay Line

A miniature motorized Variable Delay Line (VDL) and associated driver electronics are optional for the Standard OEM and Axsun Integrated Engine configurations. The VDL option is not available on Benchtop Enclosure or Small Form Factor configurations.

Connector	1060 nm Part Number	1310 nm Part Number
FC/APC	AXS85009-1	AXS84135-1
SC/APC	AXS85009-2	AXS84135-2
LC/APC	AXS85009-3	AXS84135-3

Click here to get started using your Variable Delay Line:

Operating a Variable Delay Line

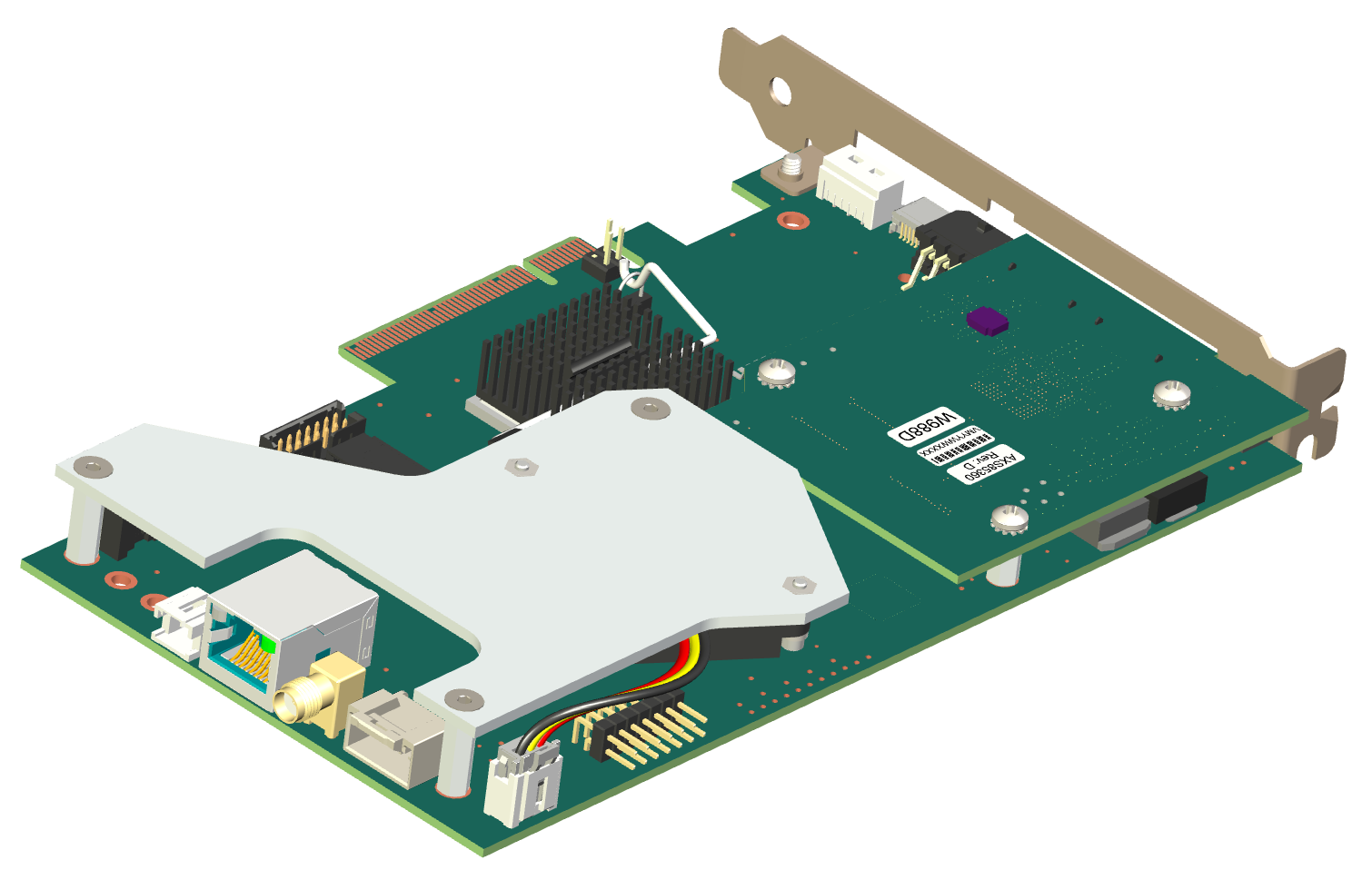

PCIe DAQ

The Axsun Integrated Engine is also available with the Ethernet DAQ physically separated from the laser engine to enable connection of the DAQ via its PCIe interface to a desktop or workstation motherboard, or via a Thunderbolt/PCIe expansion chassis.

Description	Part Number
PCIe DAQ (500 MS/s)	AXP50150
PCIe DAQ (900 MS/s, resampling)	AXP50150
PCIe DAQ (900 MS/s, direct k-clocking)	AXP50150

Click here to get started using your Axsun Integrated Engine with PCIe interface:

Integrated Engine (Laser & DAQ)
